How To Calculate Unit Hydrograph. A unit hydrograph for a given catchment shows the flow resulting from unit effective rainfall in unit time on the catchment, e.g. 2) convert dro hydrograph to unit hydrograph:

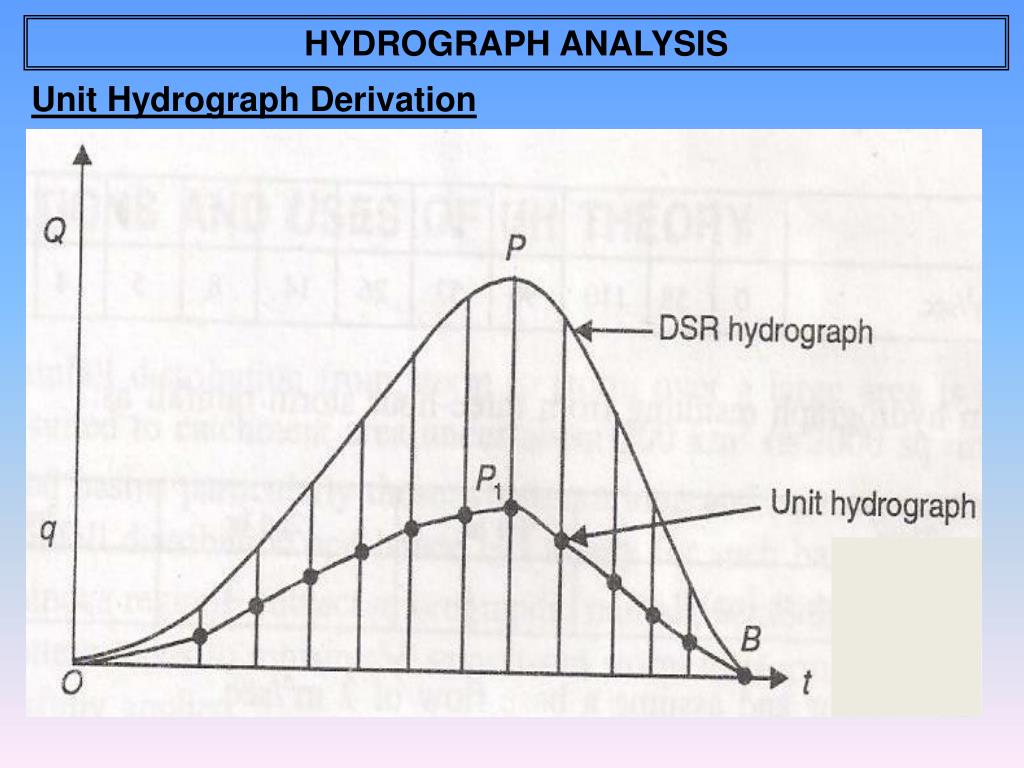

PPT Hydrograph PowerPoint Presentation, free download ID4505795 from www.slideserve.com

The standard scs dimensionless unit hydrograph (duh) can be transformed into a discharge versus time hydrograph (uh) for any watershed, given drainage area, time of concentration,. Unit hydrograph calculation drawing and interpretation explained by sanjib mandal. It is used for watershed.

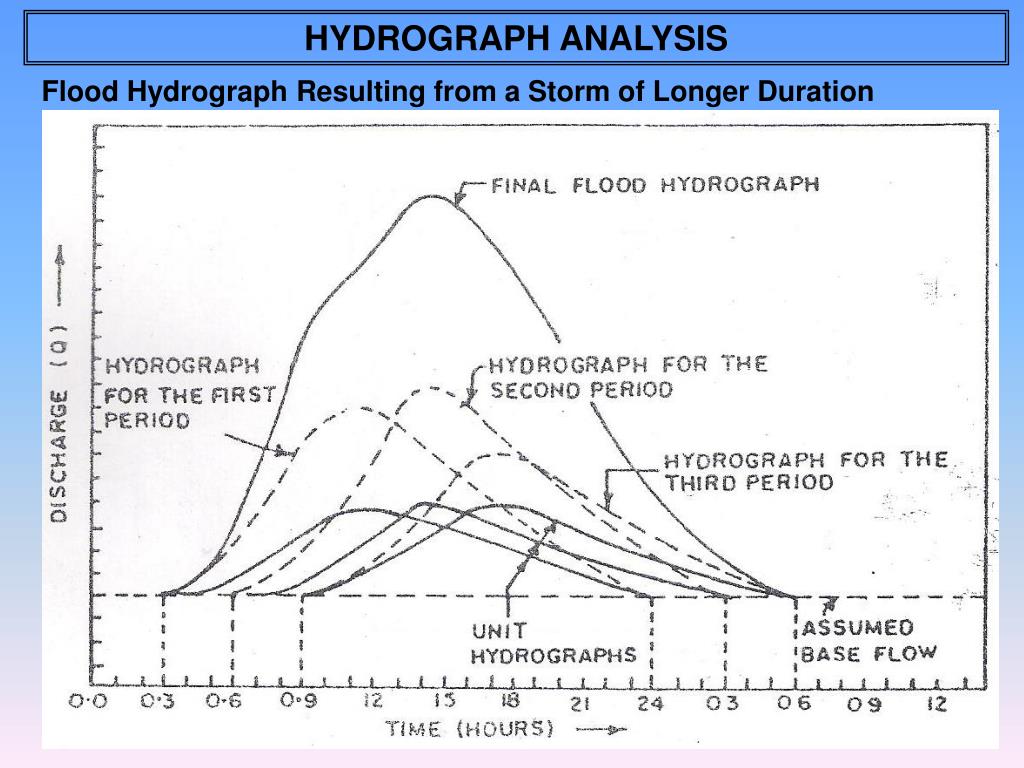

Source: www.slideserve.com

This dimensionless uh, which is shown in zz, expresses the uh discharge, ut, as a. Unit hydrograph calculation drawing and interpretation explained by sanjib mandal.

Source: euroaquae.tu-cottbus.de

Unit hydrograph can be used to develop the flood hydrographs for extreme rainfall magnitude for the design of the hydraulic structure. The computation can be done in a tabular form as shown in table 4.7.

Source: www.chegg.com

We can determine the adjustment by simply dividing the hydrograph unit (in this. It is used for watershed.

Source: cherokeemarsh.weebly.com

There are six steps in deriving a unit hydrograph from observed precipitation, basin, and streamflow data: The standard scs dimensionless unit hydrograph (duh) can be transformed into a discharge versus time hydrograph (uh) for any watershed, given drainage area, time of concentration,.

Source: www.slideserve.com

The standard scs dimensionless unit hydrograph (duh) can be transformed into a discharge versus time hydrograph (uh) for any watershed, given drainage area, time of concentration,. It is used for watershed.

Source: serc.carleton.edu

Read on for information about the components of hydrographs, baseflow separation, generation of unit hydrographs and use of unit hydrographs. The standard scs dimensionless unit hydrograph (duh) can be transformed into a discharge versus time hydrograph (uh) for any watershed, given drainage area, time of concentration,.

Source: www.slideserve.com

This dimensionless uh, which is shown in zz, expresses the uh discharge, ut, as a. We can determine the adjustment by simply dividing the hydrograph unit (in this.

Source: www.researchgate.net

The flow following, say, 10 mm effective. • during the duration d hours of a unit hydrograph, it is believed that the rainfall excess occurs uniformly across the catchment.

Source: communities.bentley.com

We then use this adjustment factor to convert the points on the hydrograph to the unit hydrograph. A direct runoff hydrograph can be obtained by using the discrete form of convolution integral as shown below.

A Direct Runoff Hydrograph Can Be Obtained By Using The Discrete Form Of Convolution Integral As Shown Below.

The computation can be done in a tabular form as shown in table 4.7. The peak flow is 664 cumec being the. These principles can be used for changing the duration of a unit hydrograph.

It Is Used For Watershed.

Here i am explained very clearly the calculation of direct runoff ordinat. Read on for information about the components of hydrographs, baseflow separation, generation of unit hydrographs and use of unit hydrographs. We then use this adjustment factor to convert the points on the hydrograph to the unit hydrograph.

Excluding Baseflow) Produced By A Rainfall Event Of Unit Depth (Usually 1 Cm) Over A Certain Period Of Time.

There are six steps in deriving a unit hydrograph from observed precipitation, basin, and streamflow data: Unit hydrograph calculation drawing and interpretation explained by sanjib mandal. Determine the volume of losses, v losses which is equal to the difference between the volume.

2) Convert Dro Hydrograph To Unit Hydrograph:

• during the duration d hours of a unit hydrograph, it is believed that the rainfall excess occurs uniformly across the catchment. This dimensionless uh, which is shown in zz, expresses the uh discharge, ut, as a. Determine the duration d of the erh associated with the uh obtained in 4.in order to do this:

The Standard Scs Dimensionless Unit Hydrograph (Duh) Can Be Transformed Into A Discharge Versus Time Hydrograph (Uh) For Any Watershed, Given Drainage Area, Time Of Concentration,.

Select the appropriate storm (uniform. The following relationships are made and will be useful in further developing the peak rate relationships. The time from the peak of the hydrograph.
