How To Calculate Magnetic Heading. Tvmdc is a mnemonic for converting true, magnetic and compass headings. The true heading in the direction the aircraft nose is pointing referenced to true north.

launcher experiment 1 Dzl's Evil Genius Lair from blog.dzl.dk

Now rotate the protractor 8 degrees clockwise (to the east). Magnetic heading is your direction relative to magnetic north, read from your magnetic compass. Magnetic heading is given as a bearing from magnetic north.

Source: www.flightliteracy.com

Tvmdc is a mnemonic for converting true, magnetic and compass headings. I am assuming you are using phone to collect gyroscope+magnetometer data.

Source: www.cfinotebook.net

How do you calculate magnetic heading? Basic principles of heading calculation.

Source: www.slideshare.net

To calculate the compass course by the true course, or vice versa, you should set the values of the magnetic declination for a given location and your compass deviation in the corresponding. I am assuming you are using phone to collect gyroscope+magnetometer data.

Source: blog.dzl.dk

Least meaning less, meaning subtraction, with the opposite (best) meaning addition. To get the true heading, you need to first read the magnetic compass,.

Source: answers.yahoo.com

Least meaning less, meaning subtraction, with the opposite (best) meaning addition. On the b747 comes from the magnetic heading reference systems.

Source: ozzmaker.com

To calculate the compass course by the true course, or vice versa, you should set the values of the magnetic declination for a given location and your compass deviation in the corresponding. This represents 8 degrees east variation.

Source: www.pinterest.com

The hmc5883l magnetometer communicates over an i2c bus, and will run off between 3 to 5 volts. Determination of true bearing from magnetic bearing rules.

Source: www.slideserve.com

To get the magnetic heading, you just read it off the magnetic compass. The true heading in the direction the aircraft nose is pointing referenced to true north.

Source: cal-international.com

The difference between true north and magnetic north is known as variation. It's basically a magnetic field sensor + compensator + compass coupler feeding the rmi & hsi, with two.

If Height_Ref Is Ellipsoid, This Is Interpreted As The Height Above The Wgs84 Ellipsoid.

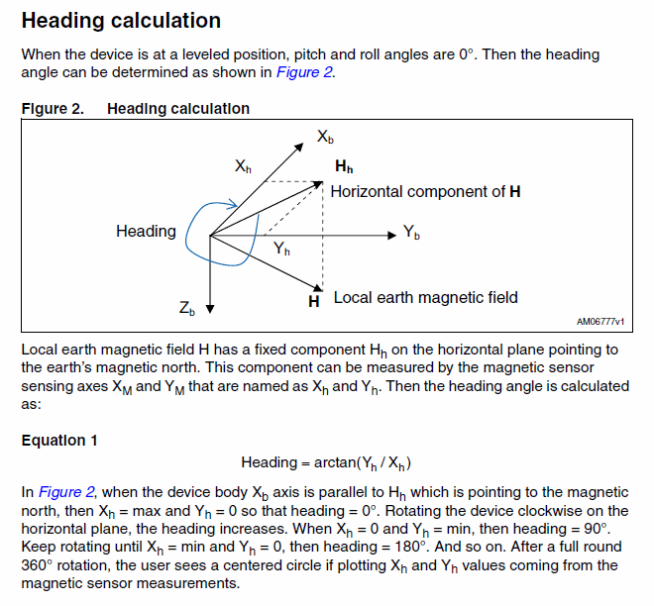

Basic principles of heading calculation. The method for converting gauss units to a compass heading is provided below. The vector used to find heading (or orientation in the general case) is denoted by ~x.

Lines Of Variation Are Shown On A Sectional Chart As Dashed Magenta Lines.

We call this direction our magnetic heading. 008 (magnetic heading) on the protractor is now aligned with 016 true. Least meaning less, meaning subtraction, with the opposite (best) meaning addition.

There’s A Little Rhyme Taught In Private Pilot Ground School, “East Is Least, West Is Best.”.

Think of the compass as a circle, divided. Tvmdc is a mnemonic for converting true, magnetic and compass headings. That mnemonic device reminds one how how you go from true to magnetic (compass heading, course, etc).

The Magnetic Heading Uses Three Magnetometers To Measure The Strength Of The Earth’s Magnetic Field, Providing An Absolute 3D Orientation.

So you’ll only need four wires to hook it up to an arduino promicro. Tc = 250, th = 242, mh = 236. True heading is your direction relative to true north, or the geographic north pole.

The Vector Must Have A Known (Or Measurable) Direction.

To get the true heading, you need to first read the magnetic compass,. Magnetic heading is given as a bearing from magnetic north. To get the magnetic heading, you just read it off the magnetic compass.
